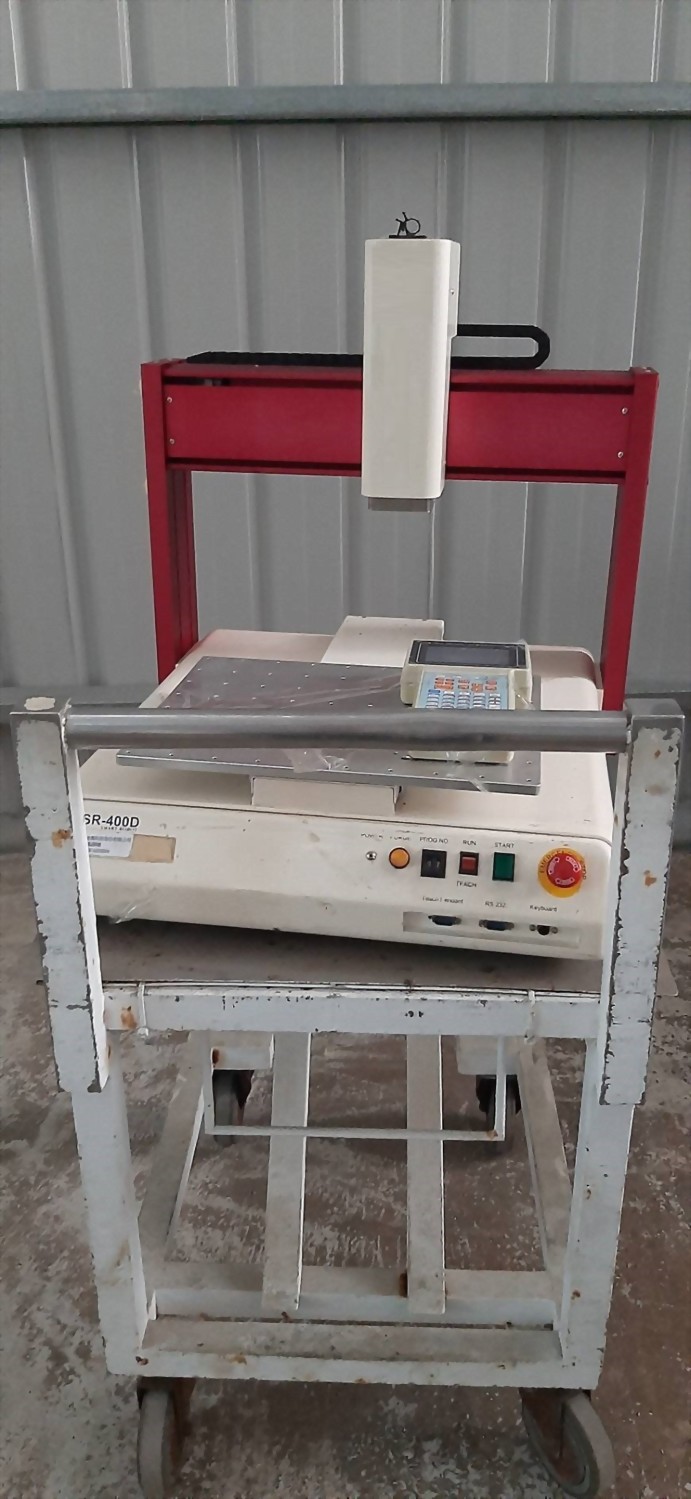

桌上型三軸機

                                     SR-400D

有效加工範圍                                   400/400/100

負重Worktable/Tool                               10KG/3KG

移動速度X& Y / Z                               800/300/sec

重複精度(Repeatability)                        ±0.01mm/Axis

解析能力XYZ (Resolution)                           0.01mm

資料記錄能力((Data Memory Capacity)     至少100組,每組500紀錄點

資料儲存方式(Data Storage Medium)               CF CardˋUSB

資料運算速度(Processor)                            32Bit

顯示方式(Program Display)                        教導盒Lcd

馬達系統(Motor System)                5-phase Micro Stepping Motor

教導模式(Teching Method)                          教導盒

運動模式(Action Method)                           PTP&CP

I/O訊號(I/O signals Port)                    8inputs/8 Outputs

輸入電源(Input Power)                         AC100V-240V/300W

工作環境濕度(Working Temperature)                10-40°C

外部介面(External Interface)                            RS232

機台尺寸(Exterior Size)                  (W)643*(D)635*(H)920mm

機械重量(Weight)                                  50.0KG
